Сервер ASUS 2U RS620SA-E10-RS12
Сервер ASUS 2U RS620SA-E10-RS12

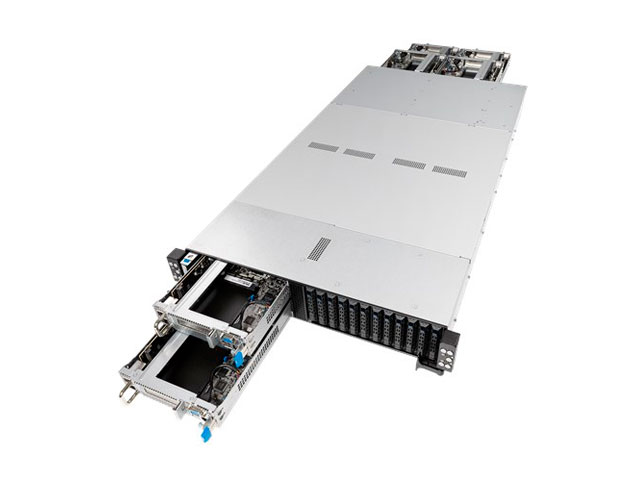

Сервер ASUS RS620SA-E10-RS12 формата 2U6N с высокой вычислительной плотностью: поддержка до 6 процессоров AMD EPYC 7002, 48 слотов DIMM (8 слотов на каждый узел), поддержка 12 NVMe-накопителей, 12 разъемов M.2, 12 разъемов U.2, поддержка до 6 адаптеров OCP 3.0, 6 слотов PCIe 4.0.
Цена по запросу
Технические характеристики сервера ASUS 2U RS620SA-E10-RS12
| Процессор / Системная шина |
1 x Socket SP3 (LGA 4094) per Node AMD EPYC™ 7002 Series |
| Generation | E10 |
| Чипсeт | System on Chip (SoC) |
| Оперативная память |
Total Slots : 8 (8-channel) per Node Capacity : Maximum up to 512GB LRDIMM Memory Type : DDR4 3200/2933/2666 RDIMM DDR4 3200/2933/2666 LRDIMM DDR4 3200/2933/2666 LR-DIMM 3DS Memory Size : * Refer to support page for more information |
| Слоты расширения |
Per Node: 1 x PCIe x16 (Gen4 x16 link), FH, HL 1 x OCP 3.0 Mezzanine (Gen4 x16 link) |
| Хранилище данных |
per Node SATA Controller : CPU Integrated 2 x M.2 connector(2242/2260/2280/22110) both SATA & PCIe mode |
| Drive Bays |
12 x 2.5" Hot-swap Storage Bays (SKU 1: 12 x 2.5" NVMe Devices) (SKU 2: 12 x 2.5" SATA/SAS/NVMe Devices) *each node could support 2 storage bays *SATA and SAS are from CB8LX12G-R2H-B board w/ Broadcom (LSI) SAS3008 |
| Сеть |
per Node 1 x Intel® I210AT + 1 x Mgmt LAN |
| Графика | Aspeed AST2500 with 64MB VRAM |
| Разъемы на передней панели | Per node: 2 x USB 3.2 Gen1 ports 1 x VGA port 1 x RJ-45 1GbE LAN ports 1 x RJ-45 Management port |
| Rear I/O Ports |
Per node: 2 x USB 3.2 Gen1 ports 1 x VGA port 1 x RJ-45 1GbE LAN ports 1 x RJ-45 Management port |
| Switch/LED |
Front Switch/LED (Only Node1-4) 1 x Power switch/LED 1 x Location switch/LED (Included Node5-6) 1 x Message LED 1 x LAN LED Rear Switch/LED (per Node) 1 x Power switch/LED 1 x Q-Code/Port 80 LED 1 x Location LED 1 x Message LED |
| Поддержка ОС |
Windows® Server 2019 Windows® Server 2016 RedHat® Enterprise Linux SuSE® Linux Enterprise Server Ubuntu Citrix XenServer |
| Администрирован-е | ASUS Control Center Enterprise (Optional) ASMB9-iKVM for KVM-over-IP |
| Regulatory Compliance | CE, FCC(Class A) |
| Размеры | 846.2 x 444 x 88mm |
| Форм-фактор | 2U |
| Вес | Net Weight: 36.99 Kg Gross Weight: 46.68 Kg |
| Электропитание |
1+1 or 1+0 Redundant 2200W 80PLUS Platinum Power Supply Rating: 200-240Vac, 12.6A (x2), 47-63Hz 1+1 or 1+0 Redundant 3000W 80PLUS Titanium Power Supply Rating: 220-240Vac, 15.5A (x2), 50/60Hz |
| Экология |
Operating temperature: 10°C ~ 35°C Non operating temperature: -40°C ~ 70°C Non operating humidity: 20% ~ 90% (Non condensing) |
