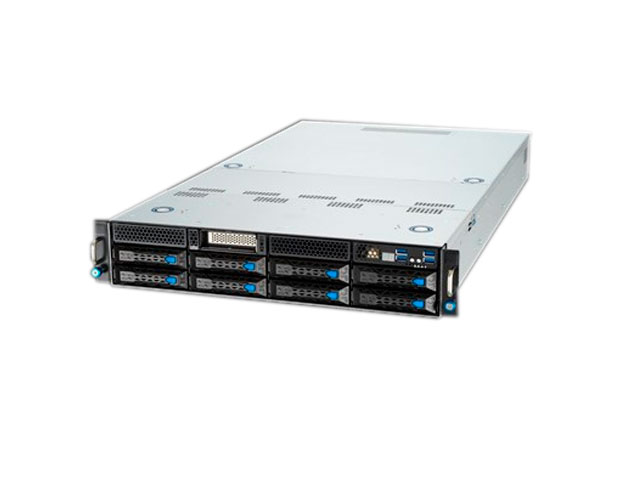

Сервер ASUS 2U ESC4000A-E10
Сервер ASUS 2U ESC4000A-E10
Однопроцессорный графический сервер ASUS ESC4000A-E10 формата 2U: поддержка процессоров AMD EPYC 7002 (64 ядра, 128 потоков до 280 Вт), установка до 8 видеокарт NVIDIA серий A100, Tesla T4 и Quadro, 8 слотов DIMM, до 11 слотов PCIe 4.0., M.2, NVMe, OCP 3.0, 2 порта Ethernet.
Цена по запросу
Технические характеристики сервера ASUS 2U ESC4000A-E10
| Процессор / Системная шина |
1 x Socket SP3 (LGA 4094) AMD EPYC™ 7002 Series |
| Оперативная память |
Total Slots : 8 (8-channel) Capacity : Maximum up to 2048GB RDIMM Memory Type : DDR4 3200 RDIMM DDR4 3200 LRDIMM DDR4 3200 LR-DIMM 3DS Memory Size : 256GB, 128GB, 64GB, 32GB, 16GB |
| Слоты расширения |
Rear: - 4 x PCIe x16 slots (Gen4 x16 link, FH,FL) for dual-slot GPU cards or 8 x PCIe x16 slots (Gen4 x8 link, FH,FL) for single-slot GPU cards - 2 x PCIe x16 slots (Gen4 x16 link, LP,HL) Front: - SKU-1 (default) 1 x PCIe x8 slot (Gen4 x8 link, LP,HL) - SKU-2 (by request) 1 x PCIe x8 slot (Gen4 x8 link, LP,HL) or 1 x OCP3.0 slot (Gen4 x8 link) by switching cables - SKU-3 (by request) 1 x PCIe x8 slot (Gen4 x8 link, LP,HL) or 2 x M.2 socket (Gen4 x4 link, up to 22110 module) by switching cables |
| Хранилище данных |
SATA Controller : CPU Integrated 1 x M.2 connector(2242/2260/2280/22110) PCIe mode (PCIe Gen4 x4 link 22110/2280/2260) Optional kits Controller : ASUS PIKE II 3008-8i 8-port SAS 12G RAID card ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card |
| Drive Bays |
8 x 3.5" or 2.5" Hot-swap Storage Bays (Backplane Supports 4 x SATA/SAS + 4 x SATA/SAS/NVMe Devices) |
| Сеть | 1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN |
| Графика | Aspeed AST2500 with 64MB VRAM |
| Разъемы на передней панели |
1 x Q-code/port-80 LED 4 x USB 3.2 Gen1 ports |
| Rear I/O Ports |
2 x USB 3.2 Gen1 port 1 x VGA port 1 x Management port (RJ45) 2 x Gigabit LAN ports (RJ45) |
| Switch/LED |
Rear Switch/LED: 1 x Power switch/LED 1 x Location LED 1 x Message LED 1 x HDD Access LED Front Switch/LED: 1 x Power switch/LED 1 x Location switch/LED 2 x LAN LED 1 x Message LED 1 x HDD LED |
| Администрирован-е |
ASUS Control Center On-Board ASMB9-iKVM for KVM-over-IP |
| Regulatory Compliance | BSMI, CE, RCM, FCC(Class A) |
| Размеры |
800mm x 440mm x 88.9mm (2U) 31.50" x 17.22" x 3.5" |
| Форм-фактор | 2U |
| Электропитание |
1+1 Redundant 1600W 80 PLUS Platinum Power Supply Rating: 100-127Vac/200-240Vac,12.9A/9.5A,50-60Hz 1+1 Redundant 2200W 80 PLUS Platinum Power Supply Rating: 100-127Vac/200-240Vac,14A/12.6A,47-63Hz |
| Экология |
Operation temperature: 10 ~ 35 / Non operation temperature: -40 ~ 70 Non operation humidity: 20% ~ 90% ( Non condensing) |
