Сервер ASUS 2U RS520-E9-RS8
Сервер ASUS 2U RS520-E9-RS8

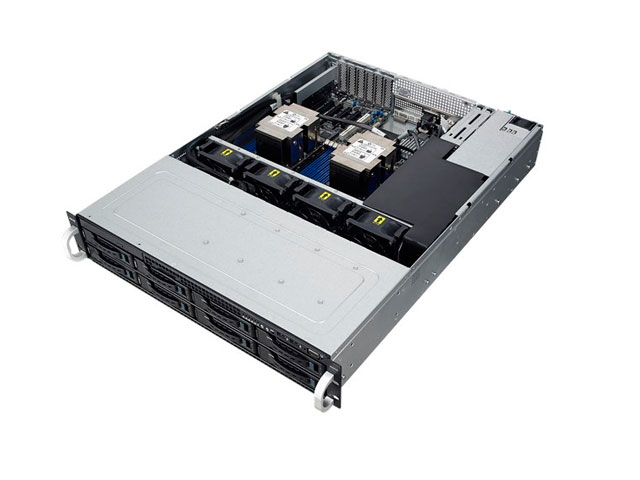

Высокопроизводительный двухсокетный сервер ASUS RS520-E9-RS8 формата 2U, на базе процессоров Intel Xeon Scalable 1 и 2-го поколения, 150Вт, с поддержкой до 2 ТБ (LR-DIMM 3DS) оперативной памяти DDR4 2933/2666, 8 отсеков для 3,5-дюймовых накопителей с функцией «горячей» замены (поддержка 4 NVMe), 6 слотов PCIe и 1 слот OCP, 2 порта M.2
Цена по запросу
Технические характеристики сервера ASUS 2U RS520-E9-RS8
| Процессор / Системная шина |
2 x Socket P (LGA 3647) 1st and 2nd Gen Xeon® Scalable Processor Family (150W) Processor UPI (10.4 GT/s) |
| Generation | E9 |
| Чипсeт | Intel® Lewisburg PCH C621 |
| Оперативная память |
Total Slots : 16 (6-channel per CPU, 8 DIMM per CPU) Capacity : Maximum up to 512GB RDIMM/Maximum up to 1024GB LRDIMM/Maximum up to 2048GB LR-DIMM 3DS Memory Type : DDR4 2933/2666 RDIMM DDR4 2933/2666 LRDIMM DDR4 2933/2666 LR-DIMM 3DS Memory Size : 32GB, 16GB, 8GB, 4GB RDIMM 64GB, 32GB LRDIMM 128GB, 64GB LR-DIMM 3DS * Refer to support page for more information * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU. |
| Слоты расширения |
2 x PCI-E x16 (Gen3 x16 link), LP, HL(CPU1: Slot 6;CPU2:Slot 1) 4 x PCI-E x8 (Gen3 x8 link), LP, HL(CPU2: slot 2-5) 1 x OCP 2.0 Mezzanine (Gen3 x16 link)(CPU1: MezzPCIE1-2) |
| Хранилище данных |
SATA Controller : Intel® C621 11 x SATA3 6Gb/s ports (8 by 2 Mini-SAS Connector) 2 x M.2 connector (2280/2260/2242) (SATA 6Gb/s & PCIe® Gen3 x4 link) Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows) (Support Software RAID 0, 1, 5, 10 ) Intel®VROC (For Linux/Windows) (Support Software RAID ) Optional kits Controller : ASUS PIKE II 3008 8-port SAS HBA card ASUS PIKE II 3108 8-port SAS HW RAID card 12G SAS Support |
| Корпус для жесткого диска |
8 x 2.5" or 3.5" Hot-swap Storage Device Bays (4 x NVMe Supported) 2 x 2.5" Hot-Swap Storage Device Bays (Rear) (SATA HDD/SSD Only) 2 x M.2 (2280, 2260, 2242) (Support SATA/PCIe M.2,SATA/PCIe RAID) |
| Auxiliary Storage FDD/CD/DVD |
1xslim-type Optical Drive Bay Options：No Device/DVD-RW |
| Сеть | 1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN |
| Графика | Aspeed AST2500 with 64MB |
| Разъемы на передней панели |
2 x USB 3.0 ports 1 x VGA port |
| Rear I/O Ports |
2 x USB 3.0 ports 1 x VGA port 2 x RJ-45 GbE LAN ports 1 x RJ-45 Mgmt LAN port |
| Switch/LED |
Rear Switch/LED: 1 x Q-Code/Port 80 LED 1 x Power switch Front Switch/LED: 1 x Power switch/LED 1 x Location switch/LED 1 x Reset switch 1 x HDD Access LED 1 x Message LED LAN 1-4 LED * LAN3-4 for Mezzazine card use |
| Администрирован-е |
ASUS Control Center(Classic) On-Board ASMB9-iKVM for KVM-over-IP |
| Regulatory Compliance | BSMI, CE, RCM, FCC(Class A) |
| Размеры |
615mm x 444mm x 88mm (2U) 24.21" x 17.48" x 3.46" |
| Форм-фактор | 2U |
| Вес |
Net Weight : 19.7KG Gross Weight : 27.97KG |
| Электропитание |
1+1 Redundant 800W 80 PLUS Platinum Power Supply Rating: 100-127/200-240 Vac, 9.4 A/4.72 A, 47-63 Hz, Class I |
| Экология |
Operation temperature: 10 ~ 35 Non operation temperature: -40 ~ 60 Non operation humidity: 20% ~ 90% ( Non condensing) |
