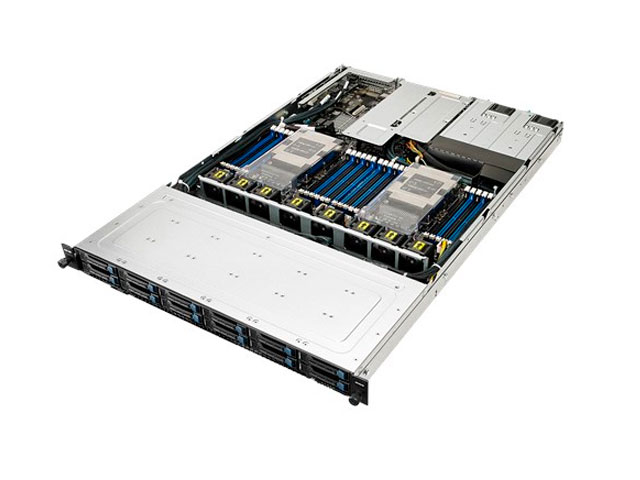

Сервер ASUS 1U RS700-E9-RS12
Сервер ASUS 1U RS700-E9-RS12
Стоечный односокетный сервер ASUS RS700-E9-RS12 1U с процессором Intel Xeon E3-1200 v6/v5, Intel Core i3, Pentium, Celeron, оперативная память до 64 Мб DDR4 2400 /2133 UDIMM 4 слота, 2 слота PCIe, 4 x 3.5" HDD с горячей заменой, 2 x SSD встроенные, 2 слота M.2 SSD, 4 x Intel I210AT + 1 x Mgmt LAN
Цена по запросу
Технические характеристики сервера ASUS 1U RS700-E9-RS12
| Процессор / Системная шина |
2 x Socket P (LGA 3647) 1st and 2nd Gen Xeon® Scalable Processor Family Processor |
| Generation | E9 |
| Чипсeт | Intel® C621 Chipset |
| Оперативная память |
Total Slots : 24 (6-channel per CPU, 12 DIMM per CPU) Capacity : Maximum up to 3072GB LR-DIMM 3DS Memory Type : DDR4 2933/2666/2400 RDIMM DDR4 2933/2666/2400 LRDIMM DDR4 2933/2666/2400 LR-DIMM 3DS DDR4 Intel® Optane™ DC Persistent Memory Memory Size : 32GB, 16GB, 8GB, 4GB RDIMM 64GB, 32GB LRDIMM 128GB, 64GB LR-DIMM 3DS 512GB, 256GB, 128GBIntel® Optane™ DC Persistent Memory * Refer to support page for more information * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU. * Intel® Optane™ DC Persistent Memory for 2nd Generation Intel |
| Слоты расширения |
1 x PCI-E x16 (Gen3 x16 link), FH, HL (CPU1) 1 x PCI-E x16 (Gen3 x8 link), LP, HL (CPU2) 1 x PCI-E x8 (Gen3 x8 link), LP, HL (CPU2) 1 x OCP 2.0 Mezzanine (Gen3 x16 link) (CPU1) |
| Хранилище данных |
SATA Controller : Intel® C621 Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows) (Support Software RAID 0, 1, 5, 10 ) Intel®VROC (For Linux/Windows) (Support Software RAID 0/1/5/10 ) Optional kits Controller : ASUS PIKE II 3008 8-port SAS HBA card ASUS PIKE II 3108 8-port SAS HW RAID card 12G SAS Support |
| Корпус для жесткого диска |
12 x 2.5" Hot-swap Storage Bays (Hybrid storage with up to 8 x NVMe, 8 x SAS and 10 x SATA) 2 x M.2 (22110, 2280, 2260, 2242) (Support SATA/PCIe M.2,SATA RAID) *SAS support via PIKE |
| Сеть | 1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN |
| Графика | Aspeed AST2500 with 64MB |
| Rear I/O Ports |
2 x USB 3.0 ports 1 x VGA port 2 x RJ-45 GbE LAN ports 1 x RJ-45 Mgmt LAN port |
| Switch/LED |
Rear Switch/LED: 1 x Power switch 1 x Q-Code/Port 80 LED 1 x Message LED 1 x Drive LED 1 x Location LED Front Switch/LED: 1 x Power switch/LED 1 x Location LED 1 x Message LED 1 x DriveD LED LAN 1-2 LED |
| Администрирован-е |
ASUS Control Center(Classic) On-Board ASMB9-iKVM for KVM-over-IP |
| Размеры |
686mm x 444mm x 44mm(1U) 27" x 17.48" x 1.73" |
| Форм-фактор | 1U |
| Вес |
Net Weight : 16.8KG Gross Weight : 18.35KG |
| Электропитание |
1+1 Redundant 800W 80 PLUS Platinum Power Supply Rating: 100-127/200-240Vac, 9.4A/4.72A, 47-63Hz Class I or 240Vdc, 4.6A (240Vdc Only for China) |
| Экология |
Operation temperature: 10 ~ 35 Non operation temperature: -40 ~ 60 Non operation humidity: 20% ~ 90% ( Non condensing) |
