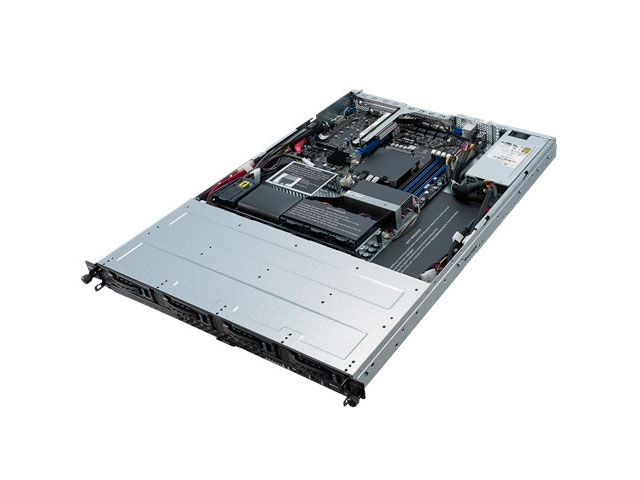

Сервер ASUS 1U RS300-E10-PS4
Сервер ASUS 1U RS300-E10-PS4
Стоечный сервер ASUS RS300-E10-PS4 формата 1U с процессором с TDP 95 Вт и поддержка 128 ГБ оперативной памяти (4 слота DIMM), до 4-х 2,5" SSD-накопителей или 3,5" жестких дисков и 2 внутренних слота для SSD, 2 слота M.2, 4 порта GbE на базе контроллеров Intel
Цена по запросу
Технические характеристики сервера ASUS 1U RS300-E10-PS4
| Процессор / Системная шина |
1 x Socket LGA1151 Intel® Xeon® processor E-2100 family Intel® Xeon® processor E-2200 family The 8th/9th generation Intel® Core™ i3/Pentium®/Celeron® Processor |
| Generation | E10 |
| Чипсeт | Intel® C242 Chipset |
| Оперативная память |
Total Slots : 4 (2-channel) Capacity : Maximum up to 128GB UDIMM Memory Type : DDR4 2666/2400 UDIMM non ECC and with ECC Memory Size : 32GB, 16GB, 8GB, 4GB UDIMM |
| Слоты расширения |
Total PCI/PCI-X/PCIe/PIKE Slots: 2 1 x PCIe x16 (x8 Gen3 Link) 1 x PCIe x8 (x8 Gen3 Link) |
| Хранилище данных |
SATA Controller : Intel® C242 Chipset 6 x SATA3 6Gb/s ports *1 2 x M.2 connector(2242/2260/2280/22110) both SATA & PCIe mode *2 Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows) (Support Software RAID 0, 1, 5, 10 ) SAS Controller : ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional) ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional) |
| Drive Bays |
4 x 3.5” Hot-Swap HDD Bays 2 x 2.5" Internal SSD Bays 2 x M.2 (NGFF 22110/2280/2260/2242) |
| Auxiliary Storage FDD/CD/DVD |
1 x Slim-type Optical Drive Bay Options: No Device / DVD-RW / DVD ROM |
| Сеть | 4 x Intel® I210AT + 1 x Mgmt LAN |
| Графика | Aspeed AST2500 with 32MB VRAM |
| Разъемы на передней панели |
2 x USB 3.0 ports 1 x VGA port |
| Rear I/O Ports |
4 x RJ-45 ports 2 x USB 3.1 ports 2 x USB 3.0 ports 1 x VGA port 1 x External Serial Port 1 x RJ-45 ports (One for ASMB9-iKVM)(Optional) |
| Switch/LED |
Rear Switch/LED: 1 x Q-Code/Port 80 LED 1 x Power switch Front Switch/LED: 1 x Power switch/LED 1 x Location switch/LED 1 x Reset switch 1 x HDD Access LED 1 x Message LED LAN 1-4 LED |
| Поддержка ОС |
Windows® Server 2019 Windows® Server 2016 RedHat® Enterprise Linux SuSE® Linux Enterprise Server CentOS VMware |
| Администрирован-е |
ASUS Control Center Enterprise (Optional) Optional ASMB9-iKVM for KVM-over-IP |
| Regulatory Compliance | BSMI, CE, RCM, FCC(Class A) |
| Размеры |
615mm x 444mm x 44mm (1U) 24.21" x 17.48" x 1.73" |
| Форм-фактор | 1U |
| Вес |
Net Weight: 11.04 Kg Gross Weight: 17.16 Kg |
| Электропитание |
Single 400W 80 PLUS Gold Power Supply Rating: 100-240Vac, 6-3.3A 60-50Hz, Class 1 |
| Экология |
Operating temperature: 10°C ~ 35°C Non operating temperature: -40°C ~ 70°C Non operating humidity: 20% ~ 90% ( Non condensing) |
