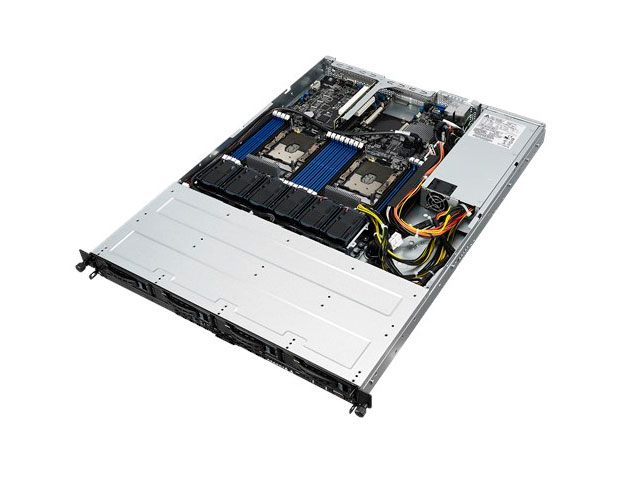

Сервер ASUS 1U RS500-E9-PS4
Сервер ASUS 1U RS500-E9-PS4
Стоечный двухсокетный сервер ASUS RS500-E9-PS4 1U с процессорами Intel Xeon Scalable 2-го поколения 165 Вт, оперативная память DDR4-2933 16 слотов DIMM, 4 SAS или SATA накопителя, 2 слота M.2 SSD, 4 порта GbE на базе контроллеров Intel
Цена по запросу
Технические характеристики сервера ASUS 1U RS500-E9-PS4
| Процессор / Системная шина |
2 x Socket P (LGA 3647) 1st and 2nd Gen Xeon® Scalable Processor Family (165W) Processor |
| Generation | E9 |
| Чипсeт | Intel® Lewisburg PCH C621 |
| Оперативная память |
Total Slots : 16 (6-channel per CPU, 8 DIMM per CPU) Capacity : Maximum up to 4096GB LR-DIMM 3DS Memory Type : DDR4 2933/2666 RDIMM DDR4 2933/2666 LRDIMM DDR4 2666 LR-DIMM 3DS Memory Size : 64GB, 32GB, 16GB RDIMM 128GB, 64GB, 32GB LRDIMM 128GB, 64GB LR-DIMM 3DS |
| Слоты расширения |
1 x PCIe 3.0 x16 Slot(Gen3 x16 link); FH,HL 1 x PCIe 3.0 x8 Slot(Gen3 x8 link); FH,HL 1 x OCP 2.0 Mezzanine Conn.(Gen3 x16 link) |
| Хранилище данных |
SATA Controller : Intel® C621 SATA Controller : Intel® C621 2 x M.2 connector Optional kits Controller : ASUS PIKE II 3008 8-port SAS HBA card ASUS PIKE II 3108 8-port SAS HW RAID card |
| Drive Bays | 4 x 3.5" Hot-swap Storage Bays (Backplane Supports 4 x 3.5" or 2.5" SATA/SAS Devices) |
| Auxiliary Storage FDD/CD/DVD | Optinal Slim-type DVD Drive |
| Сеть | 2 x Intel X722 + Marvel PHY 88E1514 (PHY) + 1 x Mgmt LAN |
| Графика | Aspeed AST2500 with 64MB |
| Разъемы на передней панели |
2 x USB 3.0 ports 1 x VGA port |
| Rear I/O Ports |
2 x USB 3.0 ports 1 x VGA port 2 x RJ-45 1GbE LAN ports 1 x RJ-45 Management port |
| Switch/LED |
Rear: - 1 x Power Switch/LED - 1 x Q-Code/Port 80 LED - 1 x Locatation LED - 1 x Message LED Front: - 1 x Power Switch/LED - 1 x Location Switch/LED - 1 x Reset Switch - 1 x Message LED - 4 x LAN LED (LED1~2 for on-board LAN, 3~4 for OCP LAN) |
| Администрирован-е |
ASUS Control Center ASMB9-iKVM for KVM-over-IP |
| Regulatory Compliance | BSMI, CE, FCC(Class A) |
| Размеры | 616 x 444 x 44mm |
| Форм-фактор | 1U |
| Вес |
Net Weight: 10 Kg Gross Weight: 16 Kg |
| Электропитание |
Single 650W 80 PLUS Platinum Power Supply Rating: 100-127/200-240 Vac, 9A/5A, 50-60Hz, Class I |
| Экология |
Operation temperature: 10 ~ 35 Non operation temperature: -40 ~ 70 Non operation humidity: 20% ~ 90% ( Non condensing) |
